TRACHEAL COLLAPSE
(ALSO CALLED "TRACHEOMALACIA")

WHAT IS THE TRACHEA ANYWAY?

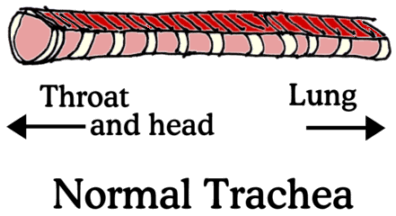

(original graphic by marvistavet.com)

“Trachea” is the scientific name for the windpipe, the tube that connects the nose, mouth, and throat to the lungs. The trachea is meant to be a fairly rigid tube. It consists of muscle connecting a group of cartilage rings. The rings are actually not complete circles; they form a C with the open end of the C facing towards the animal's back. The muscle covering the open end of the C is called the “tracheal membrane” or sometimes the "trachealis" muscle.

When the diaphragm (the flat muscle separating the abdomen from the chest cavity) flattens and the intercostal muscles (the muscles between the ribs) move, air is sucked into the lung. When the muscles move the opposite direction, air is pushed out of the lung. The trachea serves as a pipeline bringing air in and out of the chest. The trachea spans the length of the throat and extends into the chest cavity so that we can look at the trachea as having an intrathoracic portion (inside the chest) and an extrathoracic portion (outside the chest).

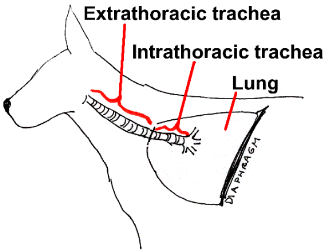

(original graphic by marvistavet.com)

 WHY WOULD A TRACHEA COLLAPSE?

Tracheas collapse because the cartilage rings weaken, which is where the term "tracheomalacia" comes into play. Tracheomalacia is the condition where the cartilage becomes spongy and soft. Cartilage in this condition cannot hold its rigid C-shaped supportive structure. When the C loses its curvature, the tracheal membrane across the top stretches out and loosens, becoming floppy. Instead of being a tight muscle canopy, the now flimsy membrane moves as air passes through the trachea. When air rushes into the chest, the membrane of the intrathoracic trachea balloons outward and when air rushes out, the membrane of the intrathoracic trachea droops down into the C cartilage causing an occlusion. The tickling sensation of the membrane touching the tracheal lining generates coughing and if the obstruction interrupts breathing, the patient may become distressed. If the collapse is in the extrathoracic (also called the cervical) trachea, the opposite occurs; the collapse occurs during inhalation and the ballooning during exhalation. In the unluckiest of patients, the tracheomalacia includes not only the trachea but down the bronchi (larger lung airways) as well. These patients have the worst prognosis and the worst coughing.

Relatively normal chest film of an elderly Pomeranian before she developed tracheomalacia. (Photocredit: marvistavet.com)

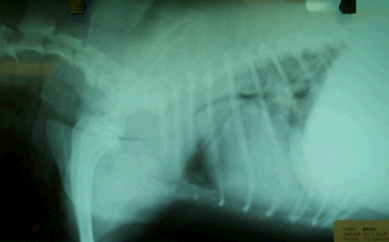

Same patient six months later after a cough had developed. The windpipe can clearly be seen narrowed to a tiny passage. (Photocredit: marvistavet.com)

Panting or rapid breathing for any reason makes the collapse and anxiety worse, which unfortunately tends to generate more rapid breathing and a vicious cycle of distress.

Making things worse still is the inflammation generated in the trachea. The collapse creates increased secretion and inflammation thus promoting yet more coughing which creates yet more inflammation. The enzymes involved in inflammation further soften the tracheal cartilage making the collapse worse. Ultimately, the tissue of the trachea changes and loses its normal characteristics and the condition gets worse and worse.

The trachea may be collapsed along its entire length, only in the intrathoracic section, or only in the extrathoracic section. Most commonly the collapse is at its worse right where the trachea enters the chest.

WHAT ANIMALS ARE AFFECTED? The victim is almost always a toy breed dog, with poodles, Yorkshire terriers, and Pomeranians most commonly affected. The disease usually becomes problematic in middle age but can occur at any age. The cartilage defect that leads to the flattened C rings seems to be hereditary.

Poodle (Photocredit: Morguefile.com)

Yorkshire Terrier (Photocredit: Morguefile.com)

Pomeranian (Photocredit: Morguefile.com)

Many dogs with collapsed tracheas do not show symptoms, however, until a second problem complicates matters. Factors that bring out symptoms might include:

• Obesity.
• Anesthesia involving the placement of an endotracheal tube.
• Development of kennel cough or other respiratory infection.
• Increased respiratory irritants in the air (cigarette smoke, dust, etc.)
• Heart enlargement (the heart can get so big that it presses on the trachea).

If a secondary factor such as one of those listed above should occur and make a previously incidental collapsed trachea a problem, often removal of the secondary factor (weight loss program, getting an air filter, etc.) may clear up the symptoms of the collapsed trachea.

TREATMENT

The following steps are often helpful in long-term management of the tracheal collapse patient:

• If any of the above listed secondary problems are of concern, they must be addressed. This may mean that the owner gives up cigarettes or that the dog goes on a formal weight loss program or other treatment to resolve the exacerbating problem.
• Dogs with collapsed tracheas become unable to efficiently clear infectious organisms from their lower respiratory tracts. Antibiotics may be needed periodically to clear up infection.
• Cough suppressants such as hydrocodone, butorphanol, or tramadol may be handy.
• Corticosteroids such as prednisone and related hormones cut secretion of mucus effectively but are best used on a short term basis only due to side-effects potential. Long-term use may promote infection and weaken cartilage further. Inhalers for dogs, similar to what asthmatic humans use may be helpful in delivering corticosteroids while minimizing side effects.
• Airway dilators such as theophylline or terbutaline are controversial as they may dilate lower airways but not the actual trachea. By dilating lower airways, however, the pressure in the chest during inhalation is not as great and the trachea may not collapse as greatly.
• Stanozolol, an anabolic steroid, has been shown to improve the symptoms of collapsing trachea in many patients. In one study, over 50% of the dogs tested completely stopped coughing and another 30% showed improvement in their condition. The problem is that this medication is no longer marketed in the U.S. and is only available through compounding pharmacies. It has become difficult to obtain.

In a recent retrospective study of 100 dogs with collapsing trachea, 71% responded to medication and management of secondary factors (obesity, irritants in the air, etc.), 7% had disease so severe that they died within one month of diagnosis, 6% had severe additional disease problems, and the other 16% were felt to be candidates for surgical treatment (see below).

EMERGENCY

The patient's distress can reach a level so severe that the normally pink mucous membranes become bluish and collapse can result. When this occurs, tranquilization is helpful to relieve the anxiety that perpetuates the heavy breathing and coughing. Oxygen therapy and cough suppressants also help. If the patient reaches the point where distress seems extreme or if collapse results, treat this an emergency and rush the pet to emergency veterinary care.

SURGERY?

If medical management does not produce satisfactory results, it is possible that surgery may be of benefit. There are two procedures presently in use: placement of steel tracheal rings to shore up the weakened cartilage and placement of a cylindrical mesh prosthesis referred to as a tracheal stent. Either procedure might be used though in recent years there has been a trend towards the mesh stent procedure and away from the ring prostheses. Both procedures have potential for complications and while improvement can be expected, patients will still require oral medications for coughing at least some of the time.

Tracheal Stent (original graphic by marvistavet.com)

RING PROSTHESIS In this procedure a rigid prosthesis is placed and bonded around the trachea effectively creating a non-collapsible tube. This is largely effective as long as the portion of trachea that is collapsed is external to the chest. Should the intrathoracic trachea be involved, the surgery becomes far less successful. The ring prosthesis technique is reported to yield improvement of 75-85% of patients receiving it but Buback's 1996 study also showed a 5% mortality rate and 10% of patients requiring a permanent tracheostomy ( surgically created hole in the trachea for breathing) within 24 hours of surgery. Further, 11% developed laryngeal paralysis as a result of the surgery and another 9% required a permanent tracheostomy later on. In that study only 11% of patients had intrathoracic collapse so complications were by no means limited to those. Median survival was 25 months in that study. MESH STENT The tracheal stent is a self-expanding cylindrical stainless steel prosthesis. A study reporting results of 24 dogs receiving this treatment was published in January 2004. Of these dogs, 96% showed improvement after surgery. Two dogs died within the first week due to stent placement complications. One dog experienced some bleeding. After the immediate post-surgical period, 30% were reported to be completely free of symptoms, 61% showed marked improvement, and 4% continued to have symptoms. Since this study, hundreds if not thousands of canine patients have received tracheal stents and improvement is seen in 75-90% of patients. Complications generally stem from problems positioning the stent or with proliferative inflammatory tissues that can grow around the stent causing further airway narrowing.

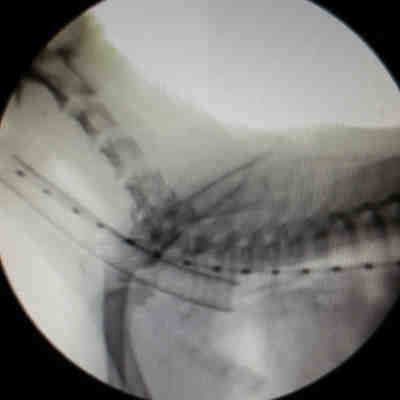

Fluoroscopic image of a dog receiving a tracheal stent. The mesh structure is the stent inside the trachea. The linear structure above is the endoscope used in its placement. (Photocredit: Dr. Anton Lapshin from his YouTube video)

Surgical solutions for tracheal collapse are not for mild cases; they are for cases that cannot be adequately controlled by medication, weight loss, and other non-surgical means. If you are interested in pursuing a surgical solution, speak to your veterinarian about what is involved for your particular pet.

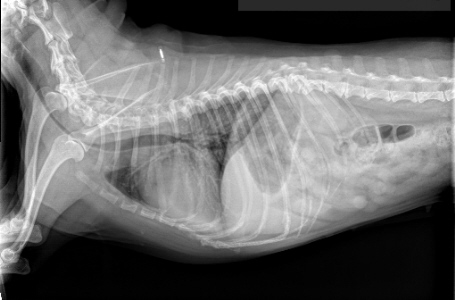

Radiograph of a dog with tracheal stent in place (the white mesh structure is the stent). (Photocredit: Kalumet via Wikimedia Commons)

A dog with a severe tracheal collapse such as this might have too much cartilage collapse for a stent to be effective.

Surgical therapy of tracheal collapse requires a surgery specialist. If one is not on staff or cannot be scheduled, referral can be arranged. For more information on this procedure, the American College of Veterinary Surgeons has a web page at:

https://www.acvs.org/small-animal/tracheal-collapse

IS THERE ASSOCIATED LIVER DISEASE?

In the July/August 2006 issue of the Journal of Veterinary Internal Medicine, a group of researchers led by Natali B. Bauer pursued the common finding of enlarged liver in dogs with tracheal collapse. Her group looked at 26 dogs with tracheal collapse and compared liver function test results to 42 dogs without tracheal collapse. Ninety-two percent (92%) of dogs with tracheal collapse were found to have abnormal results. Dogs that received stent placement to assist their breathing showed improvement in these tests. It was concluded that oxygen deprivation from the collapse had resulted in significant liver disease in many tracheal collapse patients. It was further recommended that tracheal collapse patients have liver function tests periodically performed as liver supportive medications may be helpful.
